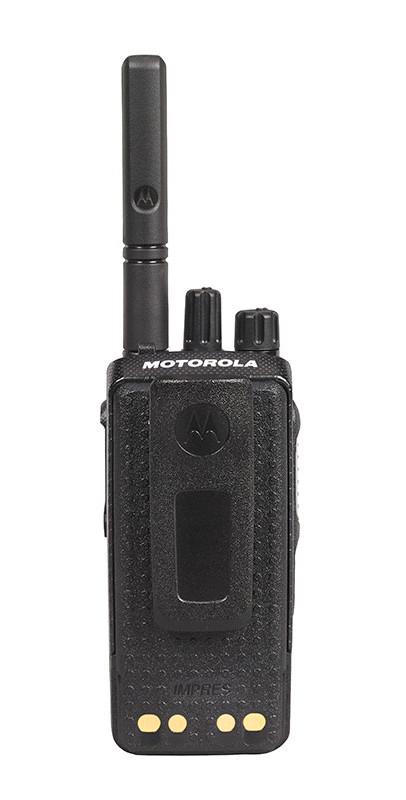

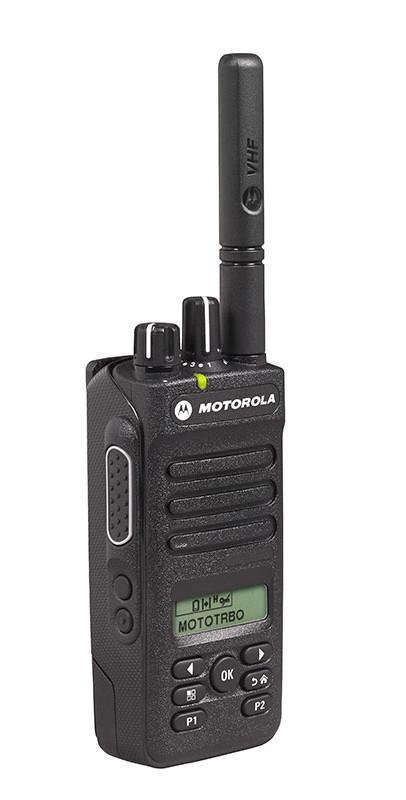

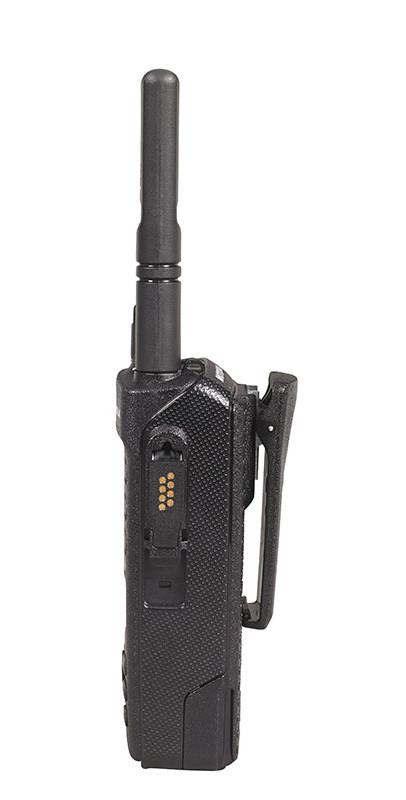

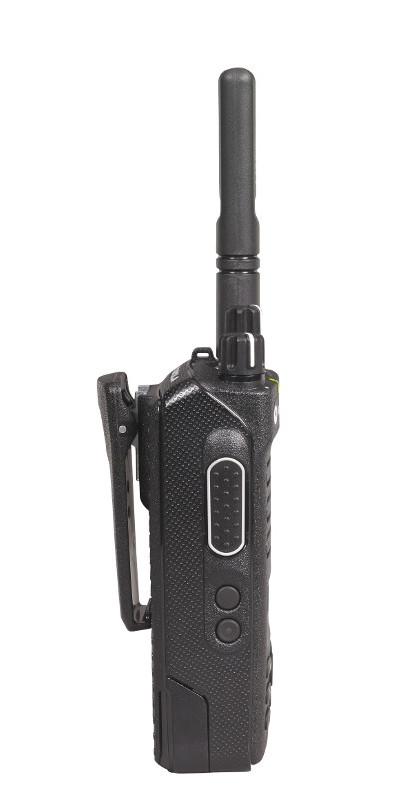

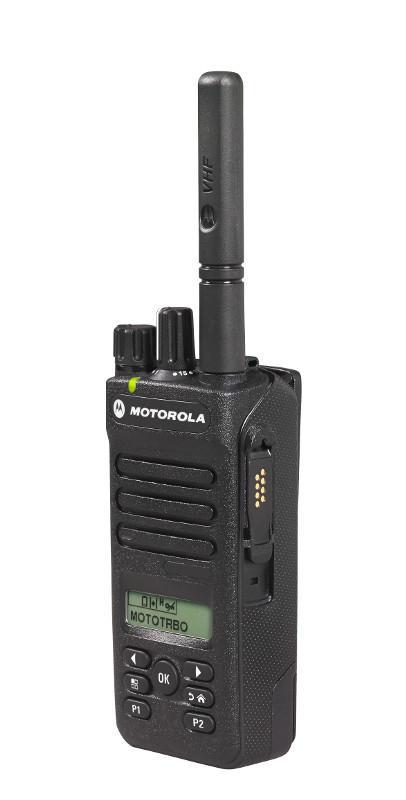

Motorola XPR3500e Handheld Radio

With this dynamic evolution of MOTOTRBO™ digital two-way radios, you’re better connected, safer and more efficient. The XPR™ 3000e Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organization.
Here's what's new in these next-generation radios:
• Integrated Wi-Fi
• Over-the-air software updates
• Bluetooth® 4.0 (future)
• Enhanced audio quality
• Improved expandability
• Better battery life (up to 28 hours)
• Better range (up to 8%)
• Better waterproofing (IP67)
• HazLoc models available

Features:
Connected: The XPR 3000e Series is a family of DMR-standard digital radios that delivers operations-critical voice communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates, giving you complete control of your radio fleet. With support for basic trunking, as well as legacy analog technology, you can keep your organization connected as it grows.
Efficient: With new noise cancellation technology and improved clarity, the XPR 3000e Series delivers excellent audio quality to make your workplace communications clearly intelligible. The latest energy technology delivers up to 28 hours of battery life for 3-shift working, and the optional IMPRES Over-the-Air Battery Management tool helps you maximize battery lifetime. An improved receiver boosts range by up to 8%, allowing you to reach
Safe: The XPR 3000e Series is designed to enhance safety in your organization, with the rapid response capability of instant push-to-talk comunications. Even if a worker is unresponsive, you can remotely activate the radio to check status, ensuring your worker is safe. Privacy options are available to protect your communications, and radios can be remotely disabled if they are misplaced. New HazLoc models are available for use in areas where flammable or explosive materials are present.

Specifications:

Standard Package
XPR3500e Radio, 1500mAh Li-ion battery, IMPRES single-unit charger, antenna, 2" belt clip, dust cover, safety booklet
Digital Technology Yes
Analog Technology Yes
Frequency Band VHF or UHF
Frequency Range VHF: 136-174 MHz; UHF: 403-527 MHz
Standard Battery Chemistry Type Lithium Ion
Estimated Battery Life VHF: 16.0 (digital) / 11.5 (analog) hours
UHF: 15.0 (digital) / 11.5 (analog) hours
Power 1W/4W (UHF), 1W/5W (VHF)
Number of Channels 16
Dimensions H x W x D (with standard battery) 4.8 x 2.2 x 1.4 inches
Weight (with standard battery) 10 ounces
Mil Specifications 810 C, 810 D, 810 E, 810 F, 810 G
IP Standards IP67
Intrinsically Safe Optional
System Type Talkaround, conventional repeater, IP Site Connect (optional), Capacity Plus (optional), Linked Capacity Plus (optional)
Display Yes
Keypad Limited keypad
Emergency Button No, but programmable buttons can be used as emergency button
Programmable Buttons 2 programmable front & 2 side buttons
Front Panel Programmable Yes
Scan Types Normal, priority, dual priority, nuisance channel delete, talk group, all group, system, home revert
VOX Operational Yes, with VOX enabled accessory
Signaling Limited Quik Call II™, MDC-1200 encoding/decoding
Group Call Yes
One to One Calling Yes
Voice Security Basic & enhanced
Text Messaging Capable Yes
Text-to-Speech No
Phone Book Yes
Caller ID Yes
Missed Call Alerts Yes
Call Forward Yes
Transmit Interrupt Optional
Voice Announcements Yes
Vibrate Alert Optional
Lone Worker Yes
Bluetooth Yes
Integrated Wifi Optional
Integrated Accelerometer No
Option Board Available No
Standard Warranty 2 Year
