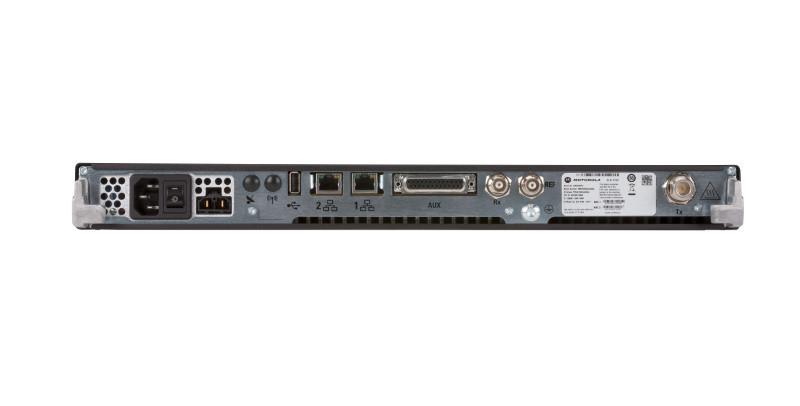

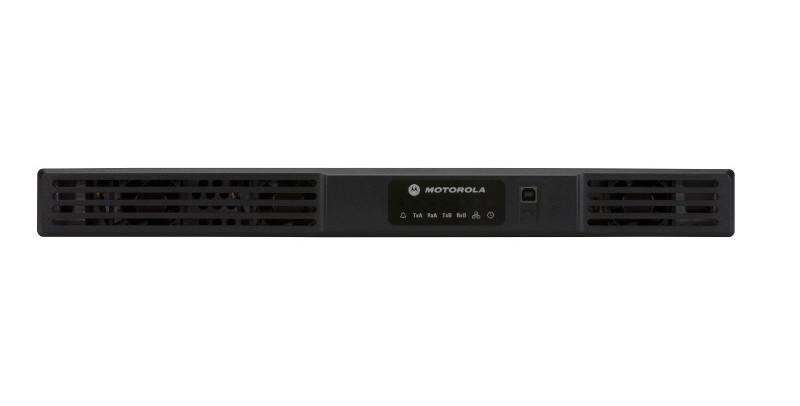

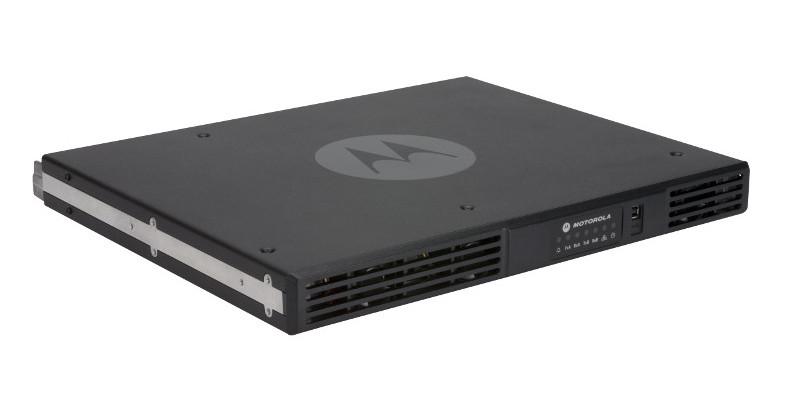

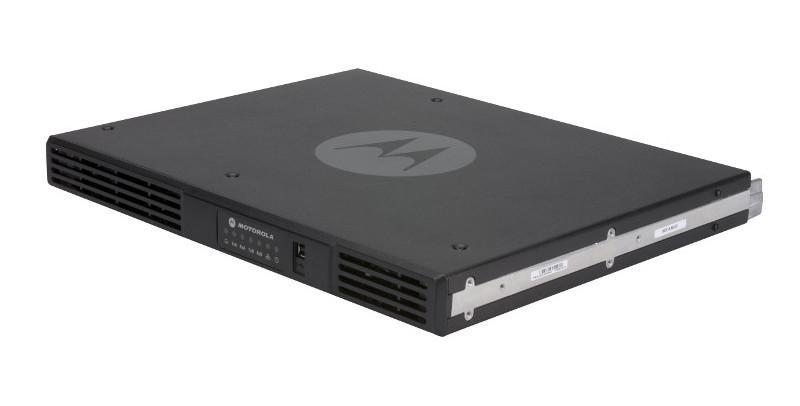

Motorola SLR5700 Repeater

For your business to be successful, you need dependable voice and data communications that reach every corner of your operations. The MOTOTRBO SLR 5000 Series Repeater delivers high performance, high reliability two-way radio service with all the features you need to connect your workplace whether you're in the field or on the factory floor.

With its sleek form factor and low power consumption, the MOTOTRBO SLR 5000 Series is engineered for low cost of ownership. And with a huge leap forward in technology, it represents the next generation in repeaters as the cornerstone of a MOTOTRBO professional two-way radio system.

Whether you need the simplicity of a single site conventional system, or the powerful trunking capabilities of Capacity Plus, Linked Capacity Plus or Connect Plus, the SLR 5000 Series delivers the power of digital two-way radio to your workforce.

Specifications:

Standard Package
 		SLR5700 Repeater, 120VAC Power Cable, Quick Start Guide (Please contact us for setup options and additional requirements for operation)
Digital Technology Yes
Analog Technology Yes
Frequency Band VHF or UHF
Frequency Range VHF 136-174 MHz; UHF 400-470 MHz
Power (Watts)
 		1-50
Number of Channels
 		64
Dimensions H x W x D
 		1.75 x 19 x 14.6 inches
Weight
 		19 lbs
Input Voltage (AC) 110V
 		Standby 0.18 A / Transmitting 1.5 A
Input Voltage (AC) 240V
 		Standby 0.25 A / Transmitting 0.9 A
Input Voltage (DC)
 		11.0-14.4 V; Standby 0.7 A / Transmitting 9.5 A
Battery Charger Capacity
 		12 VDC, 3 A
Operating Temp. Range
 		-22 to + 140 °F
Humidity
 		RH of 95%, non-condensing at 122 °F
Max Duty Cycle
 		100%
Supported Systems
 		Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus
Analog Conventional, MPT 1327
Receiver Channel Spacing
 		12.5 kHz
Receiver Frequency Stability
 		0.5 ppm
Receiver Sensitivity, 12dB SINAD
 		0.22 uV
Receiver Sensitivity, 5% BER
 		0.22 uV
Receiver Selectivity (TIA603D) 12.5 kHz
 		55 dB
Receiver Selectivity (TIA603) 12.5 kHz
 		68 dB
Receiver Selectivity (ETSI) 12.5 kHz
 		63 dB
Intermodulation Rejection (TIA603D/ETSI)
 		82 / 73 dB
Spurious Rejection (TIA603D/ETSI)
 		95 / 90 dB
Receiver Audio Distortion
 		< 1%
Receiver Transmitter Hum and Noise 12.5 kHz
 		-50 dB
Transmitter RF Output Power
 		1-50 W
Transmitter Max Duty Cycle
 		100%
Transmitter Channel Spacing
 		12.5 kHz
Transmitter Frequency Stability
 		0.5 ppm
Transmitter Intermodulation Attenuation
 		40 dB
Transmitter Adjacent Channel Power (TIA603D) 12.5 kHz
 		62 dB
Transmitter Adjacent Channel Power (ETSI) 12.5 kHz
 		62 dB
Transmitter Conducted Spurious Emissions
 		-36 dBm < 1 GHz, -30 dBm > 1 GHz
Transmitter Modulation Fidelity (4FSK)
 		FSK Error 5%, FSK Magnitude 1%
Transmitter Audio Response
 		TIA603D
Transmitter Audio Distortion
 		< 1%
Transmitter Receiver Hum and Noise 12.5 kHz
 		-50 dB
Transmitter Rated System Deviation 12.5 kHz ±2.5 kHz
Standard Warranty 2 Year
